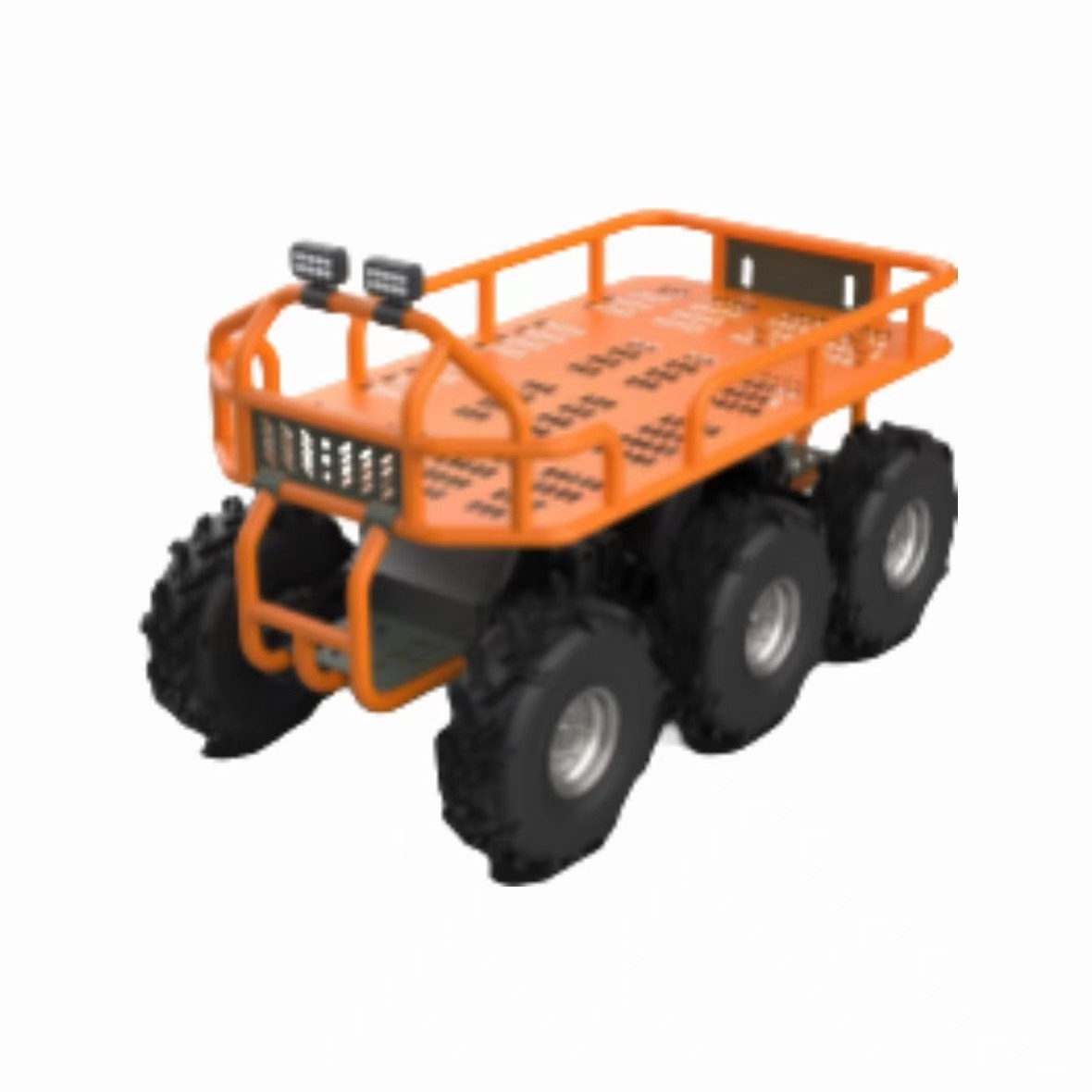

Rescue is accompanied by transport robots

Minimum Order Quantity :	2	ราคา :	USD28000/PCS
Delivery Time :	5-8 WEEK DAYS	Payment Terms :	T/T

Place of Origin:	CHINA	ชื่อแบรนด์:	TOPSKY

รายละเอียดสินค้า

รายละเอียดสินค้า

Overview:
Product introduction: The rescue accompanying transport robot is a 6x6 driven, unmanned platform with 6 direct-drive hub motors and electronic differential steering. It is possible to traverse narrow paths, steep slopes and dense jungles. Using only internal lithium battery energy storage, the car can travel more than 50 kilometers. The car's lithium-ion drive powertrain provides silent operation. The system's modular architecture and full compatibility with robot operating system protocols make the vehicle easily upgradable for a wide variety of modular tasks.
Hard points on each surface of the vehicle frame allow for safe installation of heavy loads and armor packs; It can automatically follow the vehicle or personnel walking, the maximum movement speed can reach ≥15km/h, automatically follow the target, have the function of active obstacle avoidance, can carry rescue equipment and materials for transportation, break through the "last kilometer" under most road conditions in China, can be used as a rescue stretcher, transport the injured and evacuate from the dangerous area, can be equipped with an extended range generator to improve the ultra-long battery life, networked transmission robot information parameters background phone transmission management, GPS/Beidou dual-mode positioning and other characteristics.
Scope of use: through narrow paths, steep slopes and dense jungles, carrying rescue equipment and materials for transportation, breaking through the "last kilometer" in most road conditions in our country, can be used as a rescue stretcher, transport the injured to evacuate dangerous areas

Features:

1) Auto-follow
It can automatically follow the vehicle or personnel walking, the maximum movement speed can reach ≥13.8km/h, automatically follow the target, and have the function of active obstacle avoidance
2) Strong mobility
It adopts six-wheel all-wheel independent suspension drive, which can adapt to various harsh road conditions such as forests and mountains, as well as special environments such as steep slopes and trenches
3) Transportation and reconnaissance of rescue equipment
It can carry rescue equipment and materials for transportation, breaking through the "last mile" in most road conditions in China
It can be extended to other sensors (such as audio, gas, visual gimbal, etc.) to detect and detect the target area
4) Casualty rescue and evacuation
It can be used as a rescue stretcher to transport the injured to evacuate from the danger area
5) Ultra-long battery life
It can be equipped with a range extender generator to improve the endurance
6) Networking
Networked transmission robot information parameters, background transmission management, GPS/Beidou dual-mode positioning

Specification:

Robot machine:
1. Name: Rescue Accompanying Transport Robot
2. Model: UGV
3. Basic functions: automatic follow, manual remote control, transportation, adapt to complex terrain;
4. Protection level: IP67 protection grade of the whole robot,
5. Power: electric, ternary lithium battery
6. Size: ≤ length 2330mm× width 1400mm× height 1370mm
7. Steering diameter: ≤2600mm
8. Weight: ≤880kg
9. Traction: ≥8650N,
10. Linear maximum speed: ≥13.8km/h, remote control continuously variable speed
11. Straight deviation: ≤0.30%
12. Braking distance: ≤0.5m
13. Climbing ability: ≥40° (no load)
14. Obstacle height: ≥290mm,
15. Roll stabilization angle: ≥30 degrees (no load)
16. Wading depth: ≥500mm
17. Body endurance: ≥4h
18. Reliability working time: passed 16 hours continuous stability and reliability test
19. Remote control distance: ≥350m (remote control); ≥1.5~5M(Wristband)
20. Load capacity: the cargo box can load 450KG items (evenly placed)
Control terminal: hand-held map and digital integrated remote control terminal
