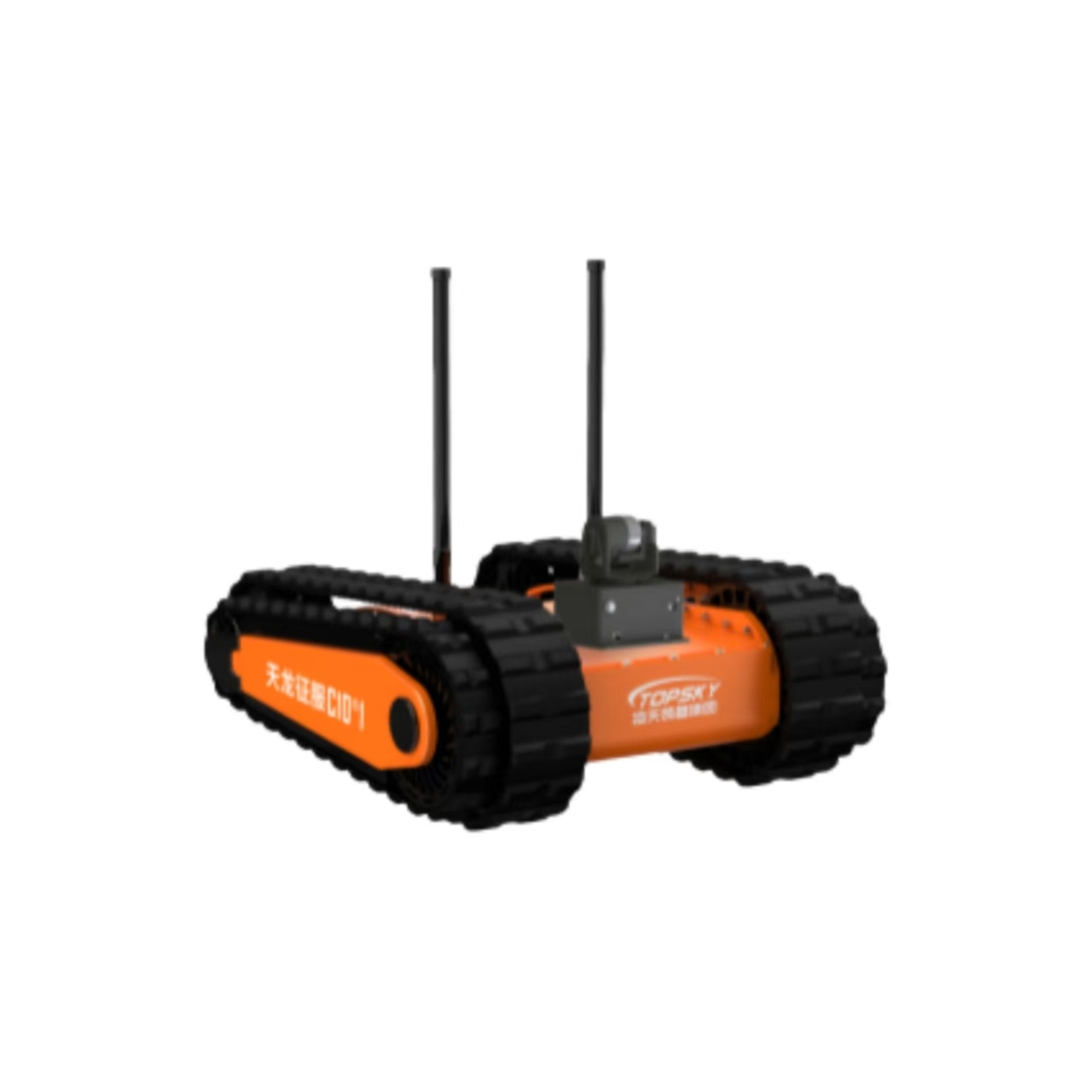

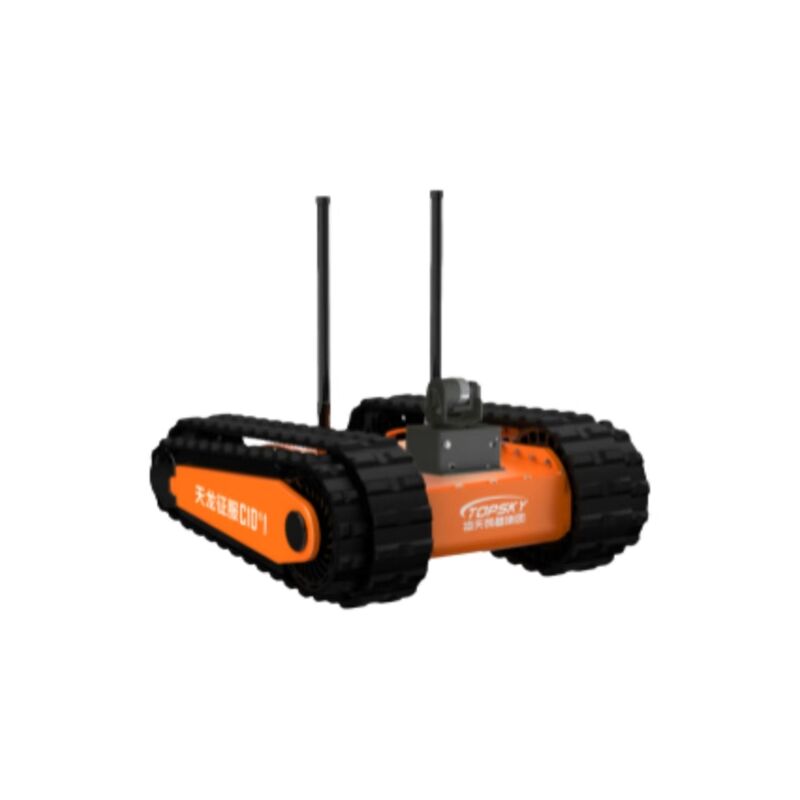

Firefighting reconnaissance robot with LIDAR rotary scanner, IP67 protection, and 3D modeling capability for hazardous environments

รายละเอียดสินค้า

• Product Overview
• Fire detection modeling robot equipped with LIDAR rotary scanner can quickly and stably obtain spatial three-dimensional data, and through the 3D point cloud processing software, flexible use of scripts, rapid analysis and processing, such as volume calculation, material positioning, object recognition, etc., and then, the results of the processing into the database, generate reports and web page display. In order to adapt to the enterprise data information collection, automation, digitalization of various needs.
• Scope of Application
• Rescue in the environment of large-scale petroleum
• chemical enterprise fire
• Tunnels, subways and other easy to collapse under the environment rescue
• Combustible gas, liquid leakage, there is a great possibility of explosion under the environment rescue Smoke, toxic and harmful gases and other environmental rescue
• Product Features
• Wide versatility
• Strong adaptability
• Powerful performance
• Rapid implementation
• Full automation
• Technical parameters
• Overall Performance Parameters Vehicle protection level ≥ IP67,
• ground clearance ≥ 100mm, obstacle clearance height ≥ 260mm, climbing angle ≥ 43°
• Basic Functions: Personnel search, video reconnaissance function, 3D modeling, gas detection, transportation of small mass (≤ 5kg) materials
• Travel Mode: Tracks + front swing arm travel mechanism, in-place rotation
•  Protection Level: Overall protection level of the robot vehicle body IP67
